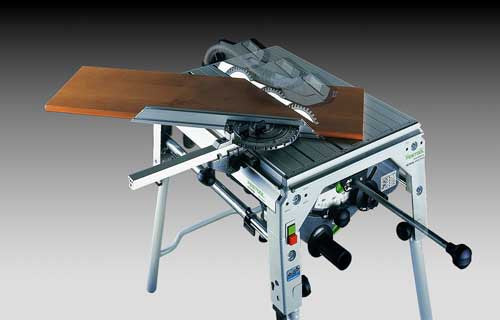

PRECISIO CS 70 EB-SET 230V

PRECISIO CS 70 EB-SET 230V

Strengths and benefits Moving splinterguard for splinter-free cuts on both sides Clearly laid out, well-positioned control elements Surrounding V groove for locating angle stops 2,200...

Brand :FESTOOL

Type :Spares

Code :

Availability :

R 52,009.65

Strengths and benefits

  • Moving splinterguard for splinter-free cuts on both sides
  • Clearly laid out, well-positioned control elements
  • Surrounding V groove for locating angle stops
  • 2,200 watt universal motor for powerful cutting

Main applications

  • Retractable spacer wedge for hidden cuts - removal not necessary
  • Tilting saw blade for angled cuts between -2?ø and 47?ø
  • Rip cuts up to a depth of 70 mm
  • Cross cuts up to 650 mm wide at 45?ø
  • Sliding table for quick, precise cross cuts up to 650 mm wide

Items Included

    operation tool, workpiece holder, HW universal saw blade W32, angle stop, 3 splinterguards, dust extraction set, ripping-cut fence, extension table CS 70 VB, extension table CS 70 VL, sliding table, in a carton

Technical Details

  • weight 66 kg
  • Power consumption 2200 W
  • Connection ?? d/e 27/36 mm
  • Saw blade diameter 225 mm
  • Inclination 0 (-2)?ø - 45 (+47) ?ø
  • Table dimensions 1260 x 910 mm
  • Work height/with foldaway legs 375/900 mm
  • Table height, legs folded away 375 mm
  • Cutting path 320 mm
  • Cutting height 90?ø/45?ø 0-70/0-48 mm
  • Table height, legs unfolded 900 mm
  • Idle engine speed 2000-4200 min???
  • Weight (set) 66 kg

Commercial Information

  • Net weight 0,000 kg
  • Gross weight 0,000 kg
  • Country of origin DE
  • PU 1
  • SU 1

Industry

Wood

Quantity In Pack

1
